Specifications
Part Number | Number of Rungs | Length (m) | Approx Working Height (m) | Wide Crosspiece (m) | Weight |
41547 | 7 | 2.21 | 3.05 | | 4.0 |
41548 | 8 | 2.49 | 3.35 | | 4.4 |
41550 | 10 | 3.05 | 3.90 | 0.79 | 6.1 |
41552 | 12 | 3.61 | 4.40 | 0.79 | 7.0 |
41554 | 14 | 4.17 | 4.95 | 0.79 | 8.0 |
41556 | 16 | 4.73 | 5.50 | 0.89 | 9.2 |
41558 | 18 | 5.29 | 6.05 | 0.89 | 10.5 |
41560 | 20 | 5.85 | 6.60 | 0.99 | 11.5 |
41562 | 22 | 6.41 | 7.15 | 0.99 | 13.2 |
41564 | 24 | 6.98 | 7.70 | 1.10 | 14.4 |
Part Number
41547
Brand
Zarges

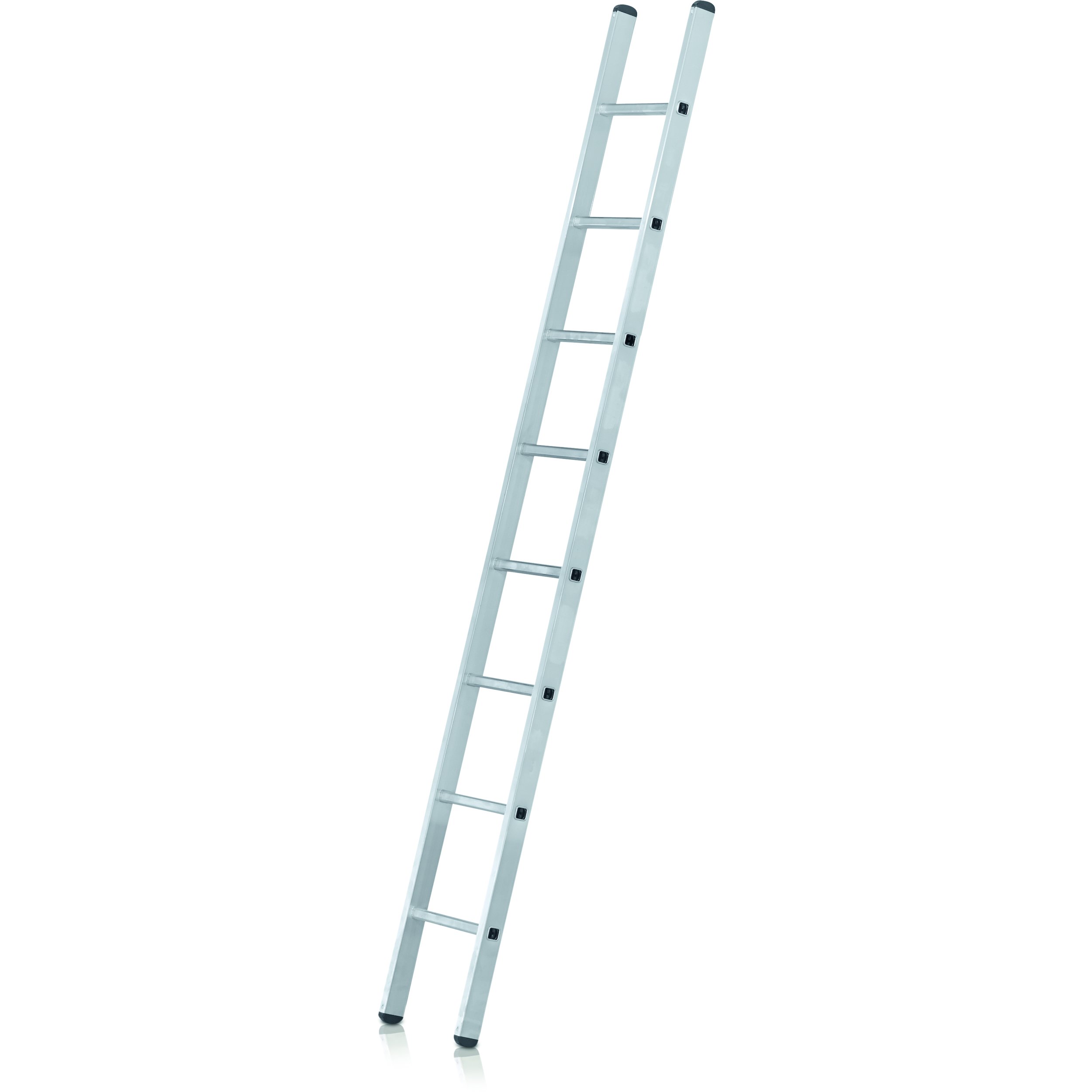

The compact alternative - with respect to size, weight and price/performance ratio.
- Rung depth 30 mm.
- Very lightweight but extremely stable.
- Outside width: 350 mm.

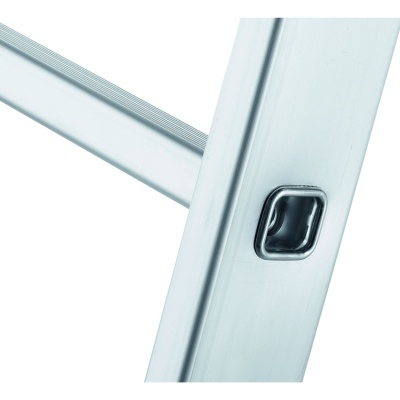

- Replaceable 2-component plastic end caps ensure positioning without risk of slipping.
- High strength, non-twist rung/stile connections.
- Rungs and stiles made from aluminium extrusions.
- Maximum load 150kg
- Complies with EN 131 Professional.
