Specifications
| Part Number | Platform Height (m) | Working Height (m) | Incl. Stabilisers | Incl. Toeboards | Transport Dimensions Approx. (m) |
| 5535102 | 0.60 | 2.60 | No | No | 1.90 x 0.75 x 0.50 |
| 5535212 | 0.60 | 2.60 | Yes | Yes | 2.20 x 0.75 x 0.55 |
| 5535122 | 1.60 | 3.60 | Yes | Yes | 2.20 x 0.75 x 0.65 |
| 5535142 | 3.60 | 5.60 | Yes | Yes | 2.20 x 0.75 x 0.85 |
| 5535162 | 5.60 | 7.60 | Yes | Yes | 2.20 x 0.75 x 1.05 |
Part Number
5535212
Brand
Zarges

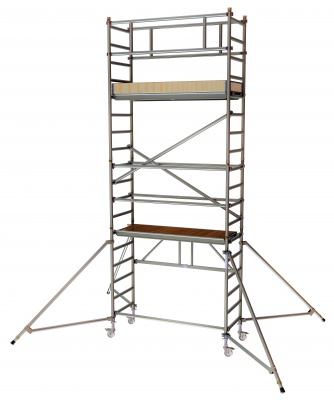

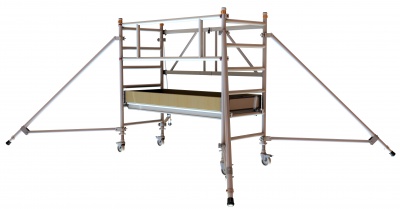

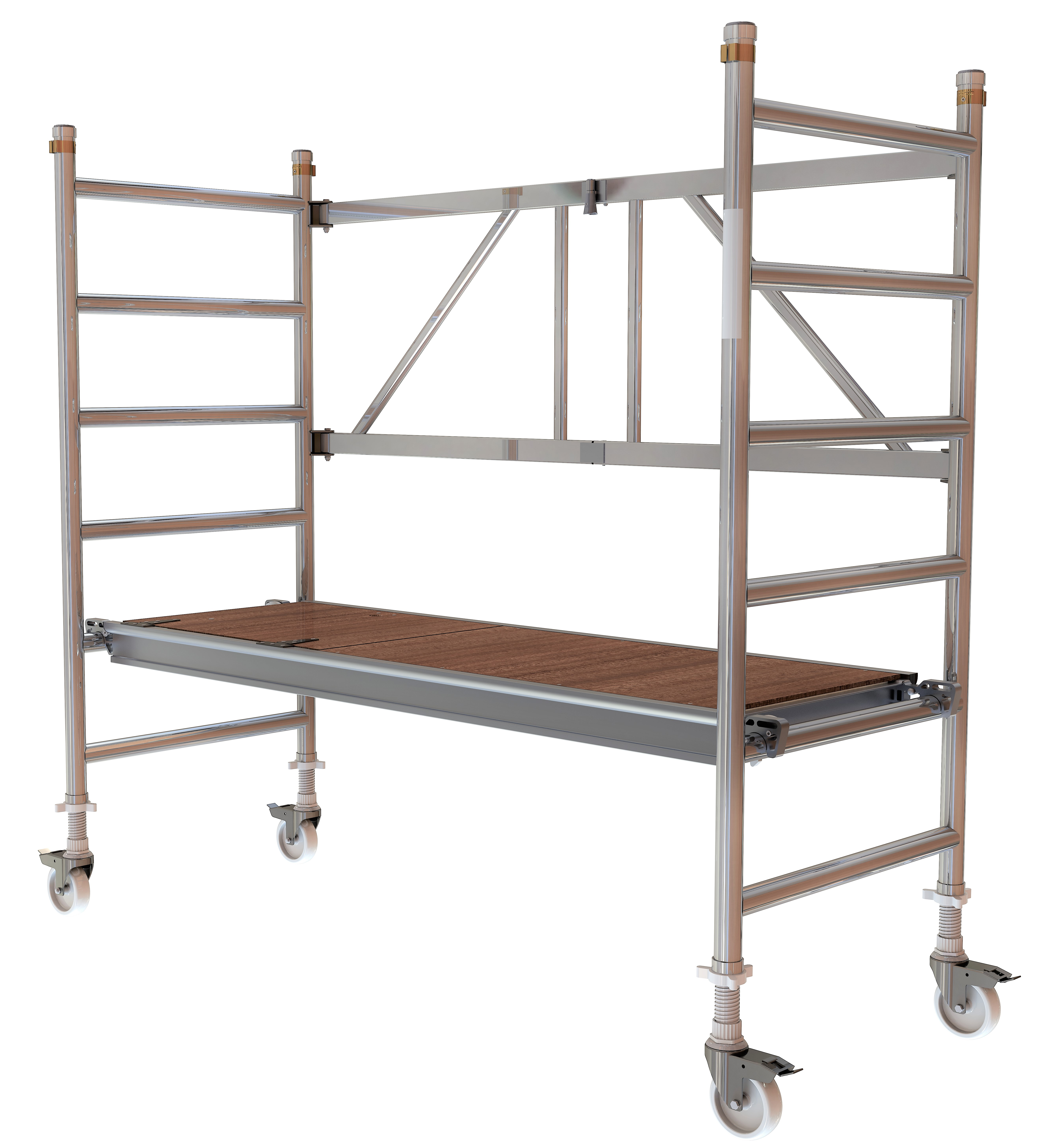

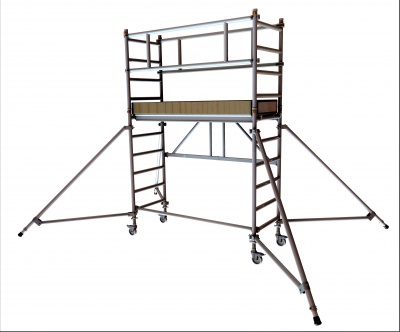

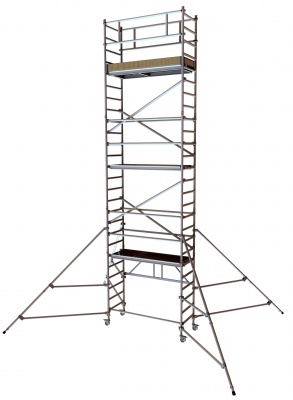

The Zarges PAXTower 3T is a versatile system designed for professionals. The one-piece fold out snap-frame is quick and easy to set up and provides a sturdy tower base for building the tower in 2m build intervals. This Through the Trapdoor (3T) tower fully complies to the latest EN 1004-1 safety standard. Platform size 1.8m x 0.6m.
• Professional tower system available in modular packs to build the tower up to 5.6m platform height
• One-piece fold out snap-frame with simple, one-handed lock and release operation, for quick and easy set up.
• Quick and safe assembly - 2m build intervals between each tower size.
• Sturdy platform with easy access to each level.
• Smooth slot-in spigots to prevent tilting when the end frames join.
• Heavy-duty braces for added strength and rigidity.
• Innovative toe board system with no clips – removes the need for toe board clips reducing number of loose components.
• Suitable for indoor and outdoor use.
• Certified to EN1004-1:2020
